> Communication PCB

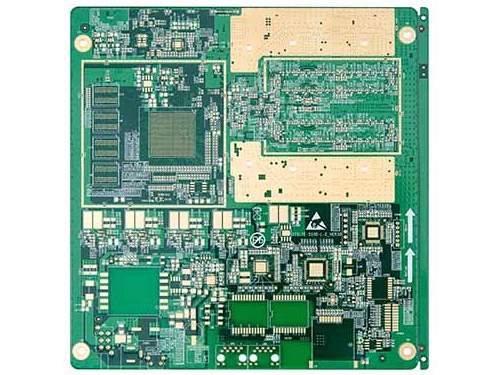

High frequency communication pcb layer: 16L
Plate thickness: 1.6mm
Outer copper thickness: H OZ
Inner copper thickness: H OZ
Minimum hole diameter: 0.15 mm
Minimum line width/line spacing: 3mil
Surface treatment: gold deposit
Product application: communication motherboard
Process difficulties: high and multi-layer
