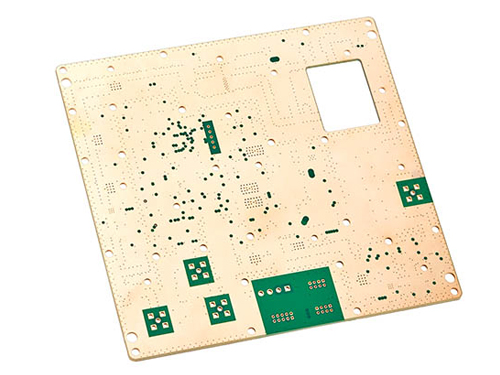

6-layer gold deposition communication pcb layer number: 6 L
Plate thickness: 1.6mm
Outer copper thickness: 1 OZ
Inner copper thickness: 1 OZ
Minimum hole diameter: 0.25 mm
Minimum line width/line spacing: 4mil
Surface treatment: gold deposit
Product application: repeater motherboard
Process difficulty: strict requirements for metal surface
