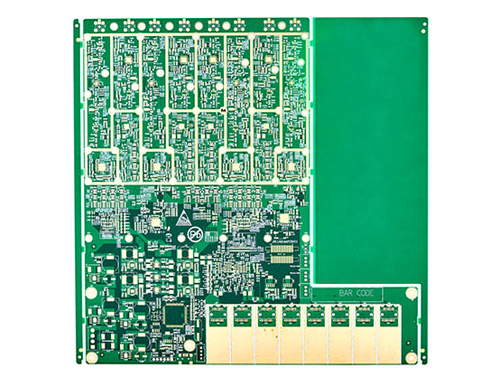

10 layer gold deposition communication pcb layer number: 10 L
Plate thickness: 2.0mm
Outer copper thickness: 1 OZ
Inner copper thickness: 1 OZ
Minimum hole diameter: 0.3mm
Minimum line width/line spacing: 4mil
Surface treatment: gold deposit
Product application: Micro base station motherboard
Process difficulty: high multilayer structure
